Insulated earthing entry -
USP
  • Patented twist resistance provided by special contour of contact washer
Specifically for station construction. Installed during formwork work. Earthing connections to the building can be made with the thread on both sides in the electrically isolated conductor core.
Insulated earthing entry -

Facts

Advantages:

  • Isolated earth for separate checking of earthing
  • Water barrier for tightness with concrete
  • Watertight M12 connection thread on both sides (blind hole)
  • Resistant to corrosion
  • Short-circuit-tested

Scope of delivery:

  • protective cover on both sides

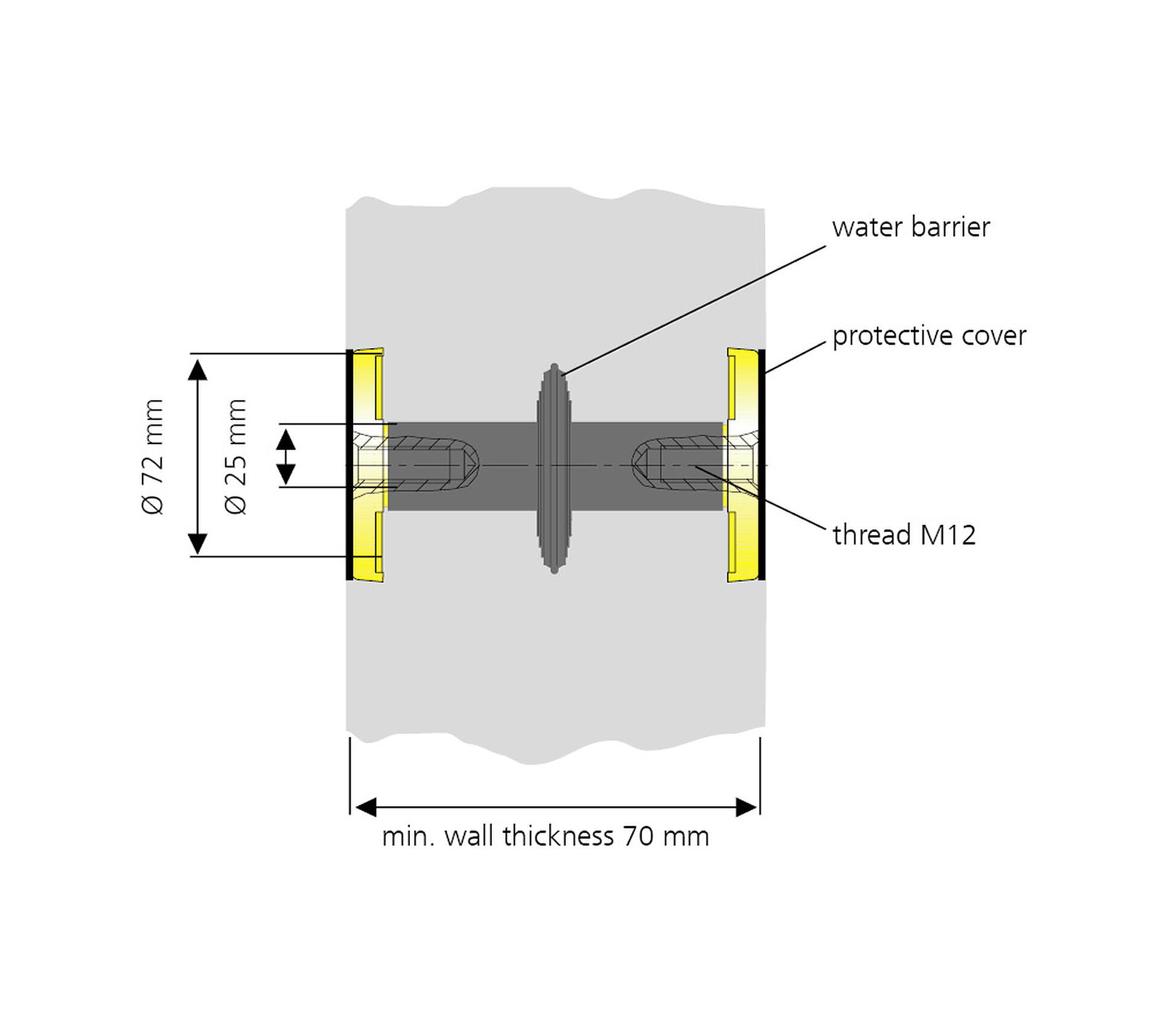

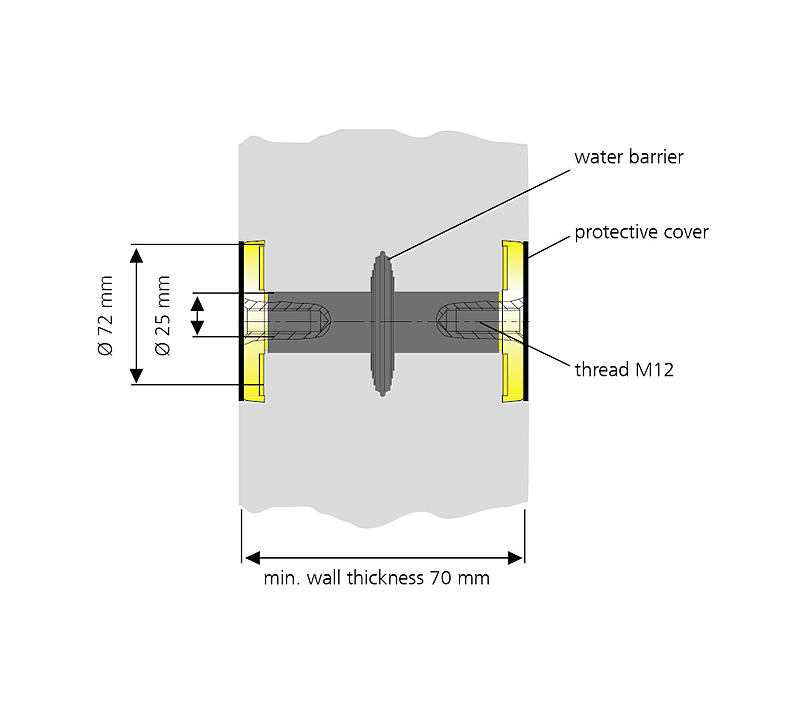

Dimensions:

  • Conductor core: round, Ø 25 mm
  • Contact washer: Ø 72 mm
  • Minimum wall thickness: 70 mm

Application range:

  • Waterproof concrete stress class 1, waterproof concrete stress class 2

Material:

  • Conductor core and contact washers: stainless steel V4A (AISI 316L)
  • Protective cover: cellular rubber
  • Electrical insulation: EPDM
  • Water barrier: EPDM

Tests/Standards:

  • To VDE 0101, EN 50522
Downloads

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

wall thickness (mm) Threaded bolt Article code Article number GTIN
70 M12 HEA IS M12/70 1710020070 4052487045278
Download of data sheet and tender specification
title=
80 M12 HEA IS M12/80 1710020080 4052487045285
Download of data sheet and tender specification
title=
90 M12 HEA IS M12/90 1710020090 4052487045292
Download of data sheet and tender specification
title=
100 M12 HEA IS M12/100 1710020100 4052487045308
Download of data sheet and tender specification
title=
110 M12 HEA IS M12/110 1710020110 4052487045315
Download of data sheet and tender specification
title=
120 M12 HEA IS M12/120 1710020120 4052487045339
Download of data sheet and tender specification
title=
130 M12 HEA IS M12/130 1710020130 4052487045346
Download of data sheet and tender specification
title=
140 M12 HEA IS M12/140 1710020140 4052487045353
Download of data sheet and tender specification
title=
150 M12 HEA IS M12/150 1710020150 4052487045360
Download of data sheet and tender specification
title=
