Fixed/loose flange wall sleeve galvanised

for setting in concrete for black tank

FLFE DIN18533 St-A3C

Add to wish listAdd to wish list

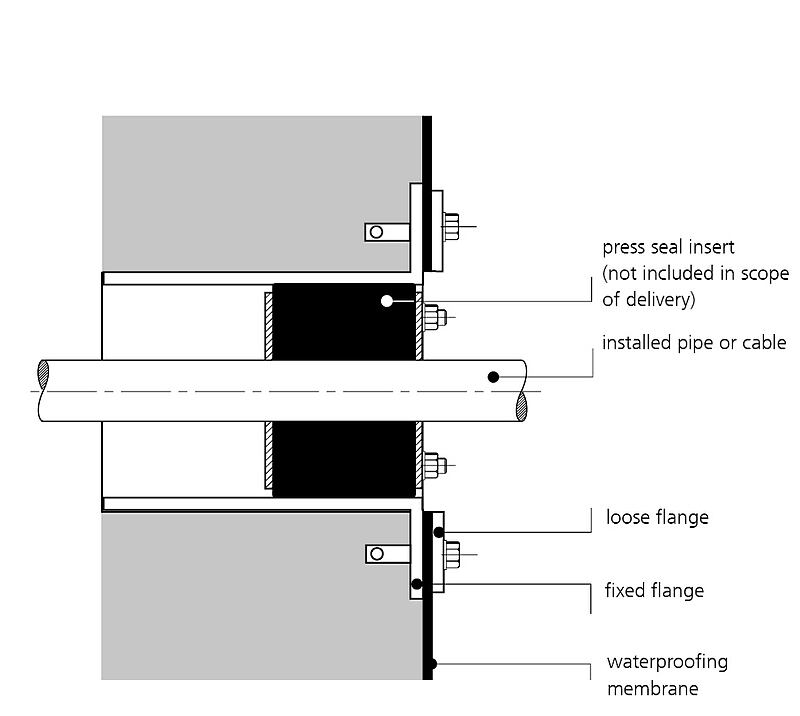

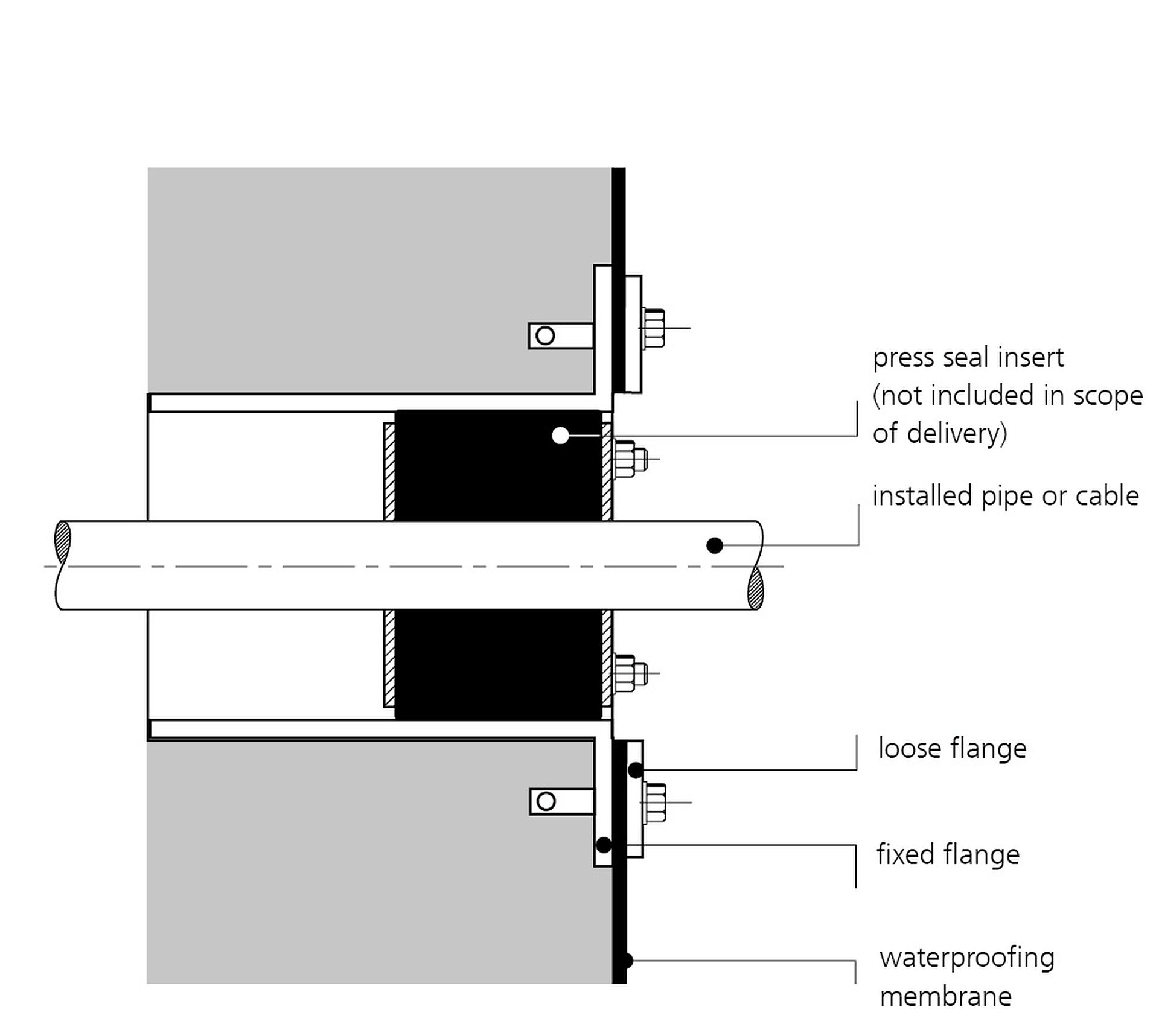

Fixed/loose flange wall sleeve galvanised - for setting in concrete for black tank
For setting in concrete or mortar in walls, ceilings or floors.
Fixed/loose flange wall sleeve galvanised - for setting in concrete for black tank

Facts

Advantages:

  • flexible wall thickness adjustment thanks to plastic wall sleeve
  • Installation flush with formwork

Scope of delivery:

  • 1 piece of fixed/loose flange wall sleeve
  • Fastenings for concrete
  • Bolts and nuts
  • 2 pieces of closing covers

Dimensions:

  • for wall thicknesses of up to 500 mm
  • Design according to DIN 18533 includes: underground structural components
  • Standard fixed flange Øa equal to the relevant wall sleeve Øi + approx. 330 mm (for one passage)

Application range:

  • Water exposure class DIN 18533: W1-E, W2.1-E and W2.2-E

Material:

  • Fixed/loose flange wall sleeve steel galvanised (gv)
  • Wall sleeve: plastic PVC-U
  • Closing cover: PE
  • Bolts and nuts: steel galvanised (gv)

Tightness:

  • gastight and watertight
Downloads

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Wall sleeve ID (mm) D1 Fixed flange OD (mm) D2 Loose flange OD (mm) D3 Wall sleeve wall thickness (mm) S wall thickness (mm) Article code Article number GTIN
100 425 415 2 200 FLFE1x100/0/200 DIN18533 St-A3C 2500420100 4052487062886
Download of data sheet and tender specification
title=
100 425 415 2 240 FLFE1x100/0/240 DIN18533 St-A3C 2500420103 4052487136181
Download of data sheet and tender specification
title=
100 425 415 2 250 FLFE1x100/0/250 DIN18533 St-A3C 2500420106 4052487136198
Download of data sheet and tender specification
title=
100 425 415 2 300 FLFE1x100/0/300 DIN18533 St-A3C 2500420109 4052487136204
Download of data sheet and tender specification
title=
100 425 415 2 365 FLFE1x100/0/365 DIN18533 St-A3C 2500420112 4052487136211
Download of data sheet and tender specification
title=
100 425 415 2 400 FLFE1x100/0/400 DIN18533 St-A3C 2500420115 4052487136228
Download of data sheet and tender specification
title=
100 425 415 2 500 FLFE1x100/0/500 DIN18533 St-A3C 2500420118 4052487136235
Download of data sheet and tender specification
title=
150 475 465 2 200 FLFE1x150/200 DIN18533 St-FVZ 3030453614 4052487242578
Download of data sheet and tender specification
title=
150 475 465 2 240 FLFE1x150/240 DIN18533 St-FVZ 3030453921 4052487242585
Download of data sheet and tender specification
title=
