Cable entries

Renovation wall sleeve

SFR

Add to wish list

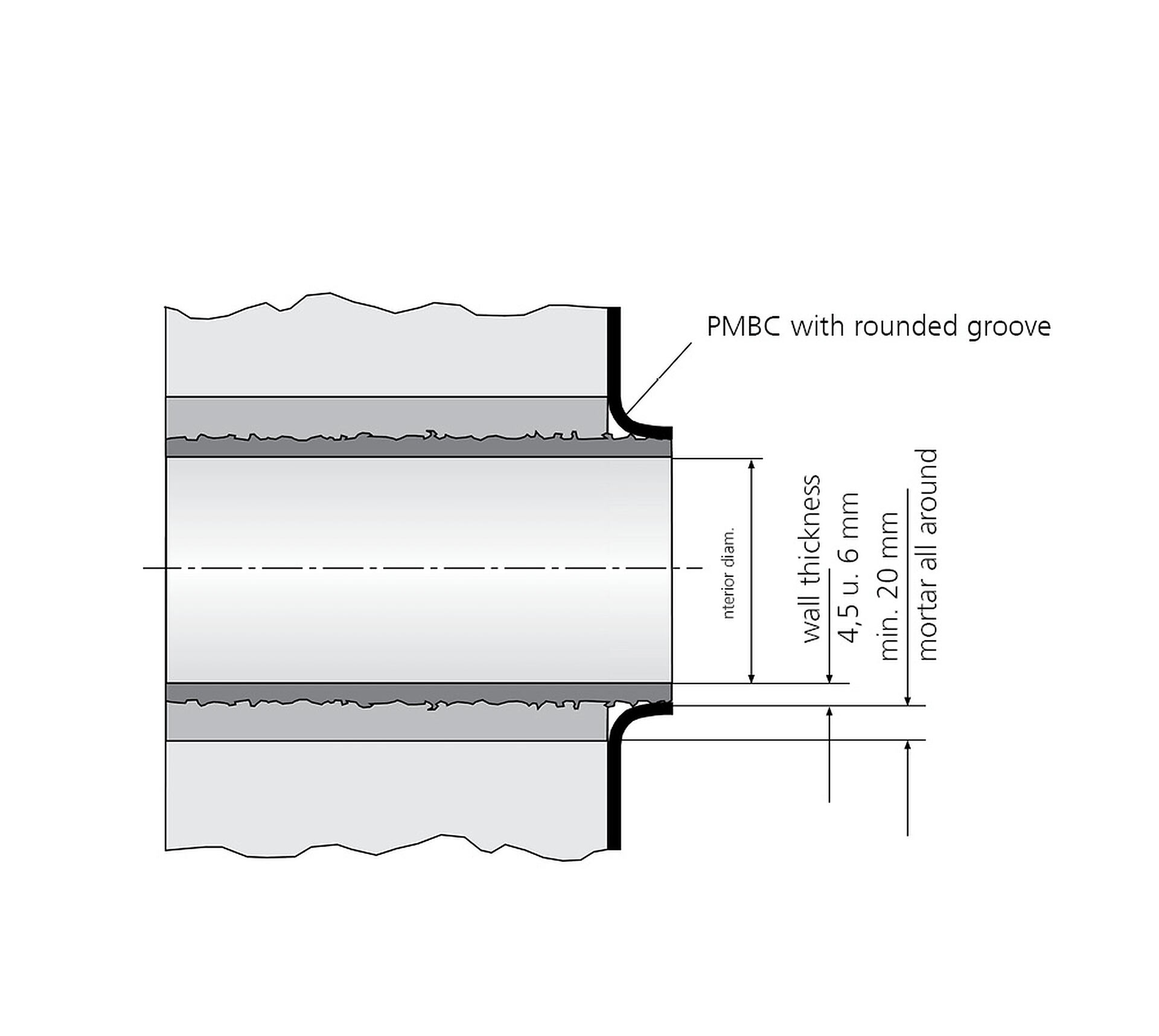

Renovation wall sleeve -
For retrofit installation in brickwork or concrete walls.
Renovation wall sleeve -

Facts

Advantages:

  • Can be cut to length on site
  • Compact design accommodates smallest possible drill holes/break-throughs

Dimensions:

  • Wall thickness: 4, 5 and 6 mm

Properties:

  • Roughened surface for connection to wall
  • Break-resistant, inherently stable
  • For retrofit installation in break-throughs

Application range:

  • Waterproof concrete stress class 1, waterproof concrete stress class 2

Material:

  • Pipe: PVC-U
Downloads

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol

Variants

Wall sleeve ID (mm) Wall sleeve OD (mm) Minimum drilling (mm) Lenght (mm) Article code Article number GTIN
100 110 200 200 SFR100/200 930000020 4052487025232
100 110 200 300 SFR100/300 930000050 4052487025263
100 110 200 400 SFR100/400 930000070 4052487025287
100 110 200 500 SFR100/500 930000080 4052487025294
100 110 200 600 SFR100/600 930000089 4052487216692
100 110 200 800 SFR100/800 930000100 4052487025317
100 110 200 1000 SFR100/1000 930000110 4052487025324
150 162 250 200 SFR150/200 930000120 4052487025348
150 162 250 300 SFR150/300 930000140 4052487025362
