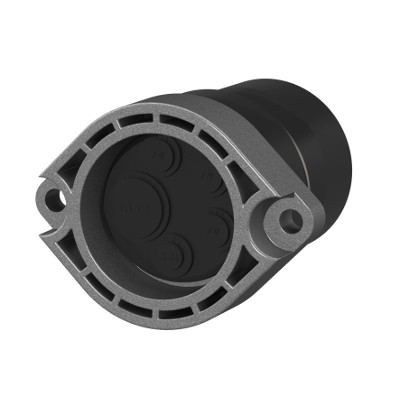

Seal insert for basic insert

ESH Basic MBK SR1

Add to wish list

Seal insert for basic insert -

all-around smooth surface for optimum connection of the finished flooring

Gastight and watertight building entry for gas, water, power or telecommunications services for buildings without a basement. The building entry is installed in the ESH Basic FUBO EBT SR1 basic unit.

Seal insert for basic insert -

Facts

Scope of delivery:

1 piece of seal insert
4 nail screws for fixing the sealing insert
2 pieces of self-tapping screws M8x45 and washers for sealing service lines

Dimensions:

Width: 135 mm
Length: 135 mm
Height: 283 mm

Properties:

DVGW-certified
Also required: gas valve or closed sealing element

Material:

Anchor plate: glass fibre reinforced polyamide
Pipe: glass-fibre-reinforced polyamide with TPE
Screws: stainless steel V2A (AISI 304L)

Tightness:

gastight and watertight to 1.0 bar

Tests/Standards:

DVGW VP 601

Downloads

Brochures

ESH Basic MBK SR1 (PDF, 3MB)

Installation instructions

ESH Basic MBK SR1 (PDF, 555KB)

Test reports

DVGW Zertifikat ESH und ESG (PDF, 1MB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Item	Article code	Article number	GTIN
Dichteinsatz für Rohbauteil	ESH Basic MBK SR1	3030473652	4052487241229	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
